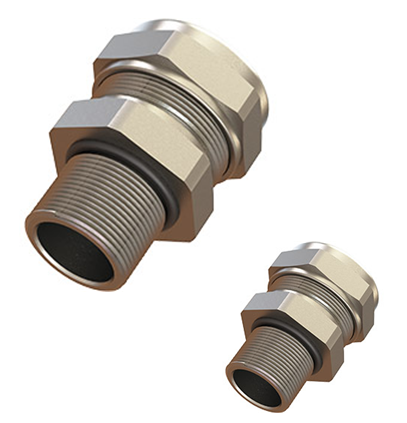

The Cable Gland Type 07-9430-41 are suitable for inserting circular cables into
Ex db enclosures with threaded entries and Ex eb or Ex tb enclosures having
either threaded or plane entries. They are suitable for use in Zone 1, 2 for gas
groups IIA, IIB and IIC and for use in Zone 21 and 22 for dust groups IIIA, IIIB
and IIIC. The glands are fastened to the enclosure via the external thread section
on the gland outer body. An elastomeric inner sealing ring is used in each gland
type to facilitate sealing between the cable and the gland body and to clamp
the cable so that no tensile or torsional forces are transmitted to the conductor
connections. IP66/68 protection (50 m for 30 minutes) is maintained when the
glands are installed according to the operating instructions.
