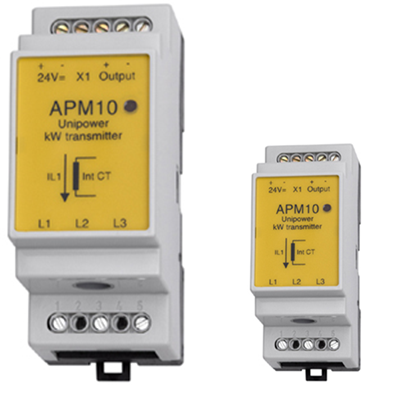

APM10: kW-transmitter
Description
Dimensions: DxWxH = 58 x 36 x 86 mm
* 3-phased symmetric kW-measurement
* Measuring voltage:
3 x 100Vac - 3 x 500Vac with one unit
* Supply voltage 24Vdc
* Direct measurement up to 60A with internal CT
- otherwise external CT N/5
* Accuracy: Class 2 according to EN 61036
* 6 current ranges: 5A, 10A, 20A, 25A, 40A, 60A
* 0(4)-20mA or 0(2)-10V analogue outputs
