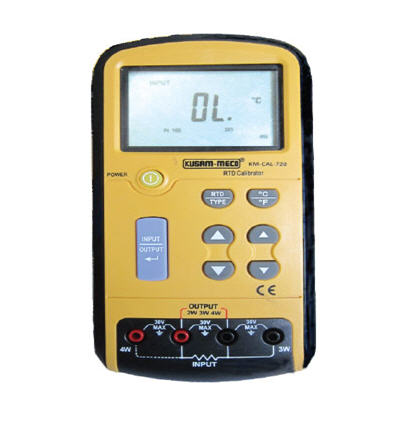

Special Features : Sources and measures 7 RTD types devices (PT10, PT50, PT100, PT200, PT500, PT1000 (385), PT100 (JIS)) or Ω Large 5 digit LCD with full angel High accuracy maximum up to 0.2°C and 0.1Ω Mesurinag and Simulating RTD With standard jack for external power supply General Specification : • Maximum voltage applied between any jack and earth ground or between any two jack : 30V • Storage temperature : -40 °C ~ 60°C • Operating temperature : -10 °C ~ 55°C • Temperature coefficient : ± 0.01% / °C on 0°C ~ 18°C and 28°C ~ 50°C • Relative humidity : 95% up to 30°C, 75% up to 40°C, 45% up to 50°C, 35% up to 55°C • Temperature accurate : ± 0.2°C with 0.1° Resolution • Resistance accurate : ± 0.1Ω with 0.1Ω resolution • Operating altitude : 3000 meters maximum • Resolution : RTD 0.1 °C / °F • Resistance : 0.01/0.1Ω • Range : 0.00 ~ 3200.0 Ω or -200.0 ~ 630.0° C • LCD size : 205 x 97 x 45 • Dimension : 205 x 97 x 45mm • Shock : Random 2g, 5Hz to 500Hz • Power Supply : 6 x AAA 1.5V Battery • Dimension : 205mm x 98mm x 46mm • Weight : 472g (include battery)
