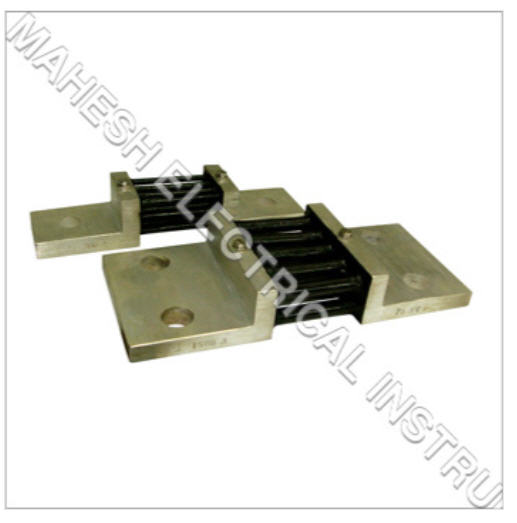

Product Description DC Shunt Since 1982, we have been offering our clients DC Shunt with current ranging from 5-10000 Amps and voltage drops of 75 milli volts. Our company fabricates these shunts with quality raw materials such as Managing Rods Soldered or Silver Brazed to Brass end blocks by meeting IS Standards 1248. We also fabricate according to standard and customized range. Our range is reputed for precision engineering,efficient performance, durability and price affordability. Technical Specification: Accuracy: Class 1 Overload: We fabricate shunt, which can withstand temperatures up to 120 C without any permanent changes in physical or electrical properties. Overloads and faults can be safely handled, which can results in temperatures of this magnitude. All 75 millie volts drop shunts of class 1, withstand the following overload requirements: 2 X rated current for 3 minutes. 4 X rated current for 30 seconds.10 X rated current for 5 seconds. Temperature Co-Efficient: 0.002% Per degree centigrade, above ambient temperature in still air, with free ventilation. Temperature not exceeding 120oC at the center and 90oC at the ends.
