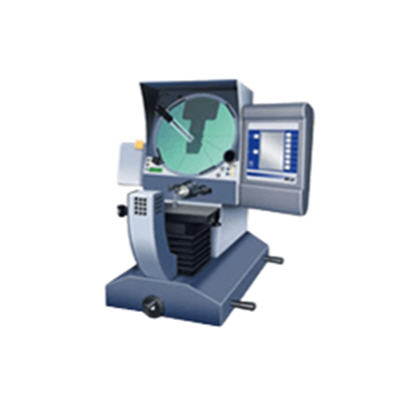

TECHNICAL SPECIFICATIONS Compact light weight table top with easy operations. 250mm diameter screen with 90º cross line and chart holders. Screen is graduated to 360º with vernier reading 6 minutes. Projection Light source with 24V / 150W Halogen lamp. Double obtique light source for surface illumination. Two adjustable dichroic reflector lamps 12 V/ 100 W each. Focussing can be adjusted manually by hand knob. High Quality objective lenses. Specifications Optical distortion below 0.15% standard magnifications: 10X optional: 20X and 50X. Cross travel stage size 125 x 125 mm. Table travel upto 35x35mm (with the use of Gauge Blocks). Micro-Head Standard 0.25mm, Least count0.01mm. Rotary measuring stage glass Ø 62mm. vertical focusing by rack and pinion. Measurements available through Manual or optional digital micrometers. Cooling by built-in noseless & vibration free fan. Available in 110V & 220 V through low voltatge transformers. Supplied complete with vinyl cover, bulb, fuse, operating instruction manual etc.
