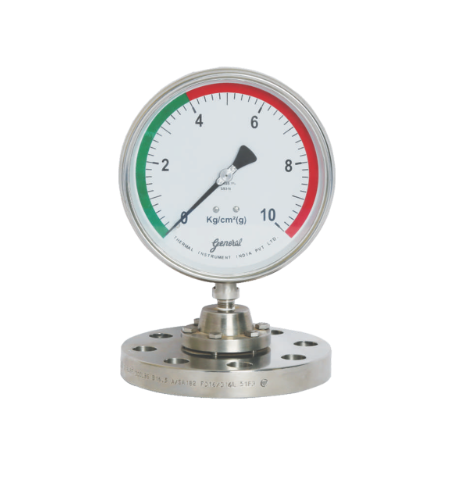

General Instruments Flush Diaphragm Seal Pressure Gauge GIC is the leading Flush Diaphragm Seal Pressure Gauge manufacturer in India providing reliable solutions for accurate pressure measurement to process industry worldwide. Model: CSU Flush Diaphragm Seal Pressure Gauge: hidden ports that could allow process fluid entry and cause system clogs. Optional features are Cooling Tower, Capillary for Remote mounting of the Pressure Instrument, Flushing Ring (Spacer Ring) for purging/cleaning the area below the diaphragm without removing the Seal from the process line, Stud / Nut and gasket for assembling the Diaphragm Seal with the Process Flange. TESTS Visual Inspection Dimensional Verification Accuracy Test Hysteresis Test Leak Test Influence Of Mounting Position Degree of Protection Effect of Mechanical Vibration Effect of Mechanical Shock Endurance Test With Steady Pressure Endurance Test With Over Pressure Endurance Test with Cyclic Pressure Safety Blow-out Test Thermal Stability Test at Rated Temperature Features: Compliance to latest EN-837, IS.3624 & ASME B40.100 standard Range: (-) 1 to 1000 kg/cm2 Bourdon in SS316L as standard provides better mechanical properties guaranteeing repeatability and accuracy. Accuracy +/- 1% FSD (standard), +/- 0.5% FSD on request Unit of measurement – Kg/cm2, bar, & As per standard
