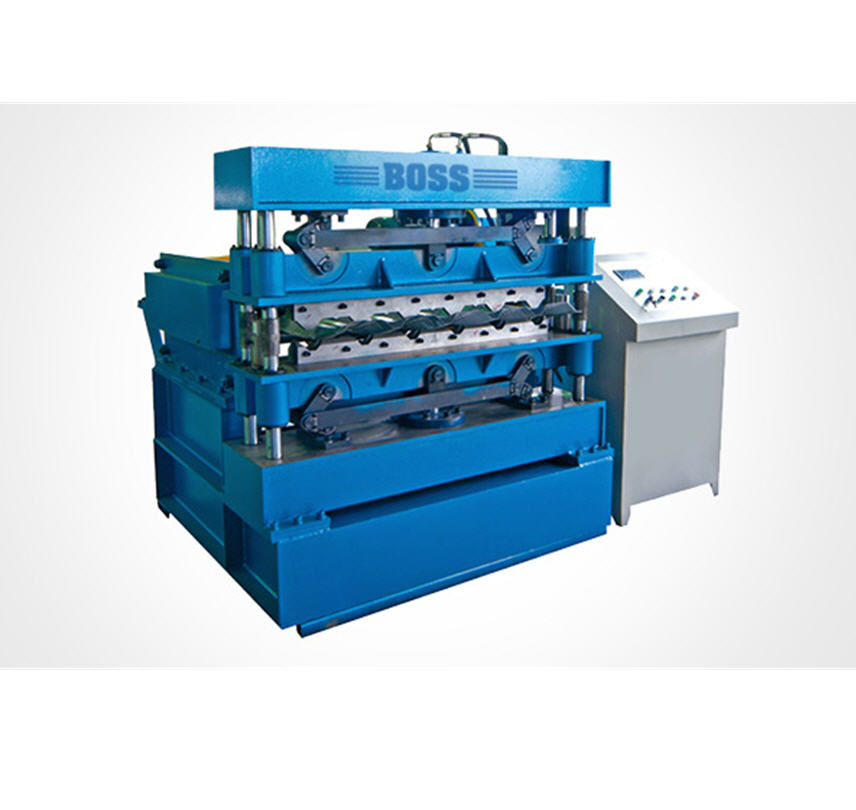

The main frame of Crimping machine is welded separately and the outside wall is connected by screw after being rotoblasted on the surface. Roller Material is high grade No.45 forged steel, with digital-controlled procession. Shafts of rollers are tooled by grinding machine for two times to ensure the precision of final product. The rollers are plated with hard chrome with thickness of 0.05mm on the surface after being machined by the exact machine tool. So that ensure long life of forming rollers. The suitable material thickness (C is the width of corrugated sheet produced by roll forming machine) is C×0.4～0.6 mm, Raw Materials will be Color Steel Sheet. The yield strength of raw material is 235-400Mpa. The Shaft diameter is 72mm, Quantity of feeding rollers is about 3 stations, Crimping length is min.25 mm and time is 10times/minute. Power voltage:415V/50Hz, 3 phase and main machine motor power: about 2.2kW (Depend on final design). The outside dimension size is 1600mm×1600mm×1750mm (length×width×height)
